ritual table - rfid puzzle

2024 · HARDWARE · CIRCUIT DESIGN · INTERACTIVE DESIGN

physical objects. real placement. no buttons.

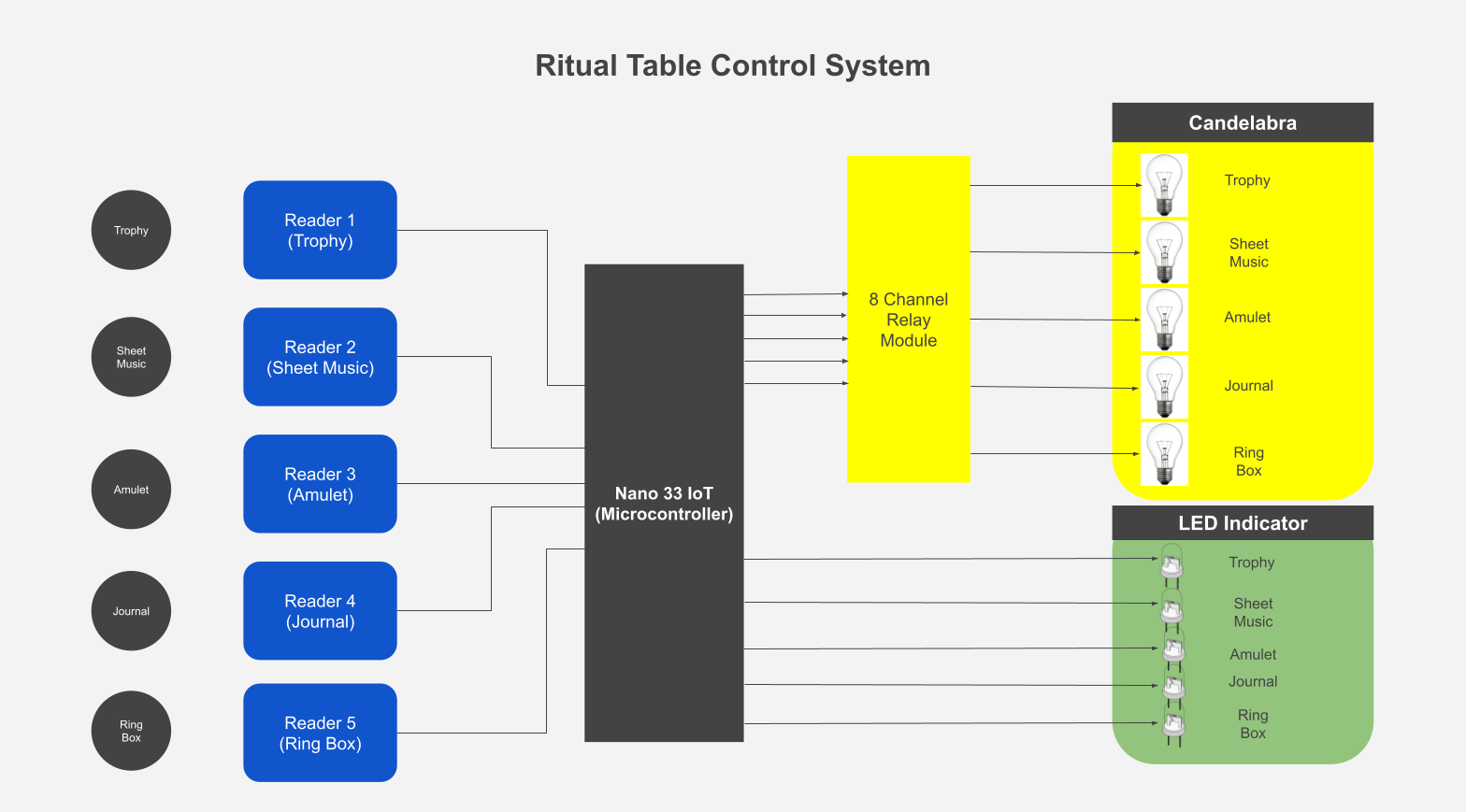

prototype puzzle hardware for an escape room installation. five RFID readers embedded in a wooden table detect the placement of five designated objects. correct placement lights the corresponding candle. incorrect placement triggers a rapid flash across all five.

designed and built from scratch: RFID reader integration, microcontroller programming, and a low-voltage control circuit for 12V light bulbs.

—

this is the hardware layer. the show control system built on top of it → ritual table - show control system

—

tools: Arduino · RFID (RC522) · relay circuit · 12V lighting

—

special thanks to Playful Technology — whose RFID tutorials were an essential reference.
